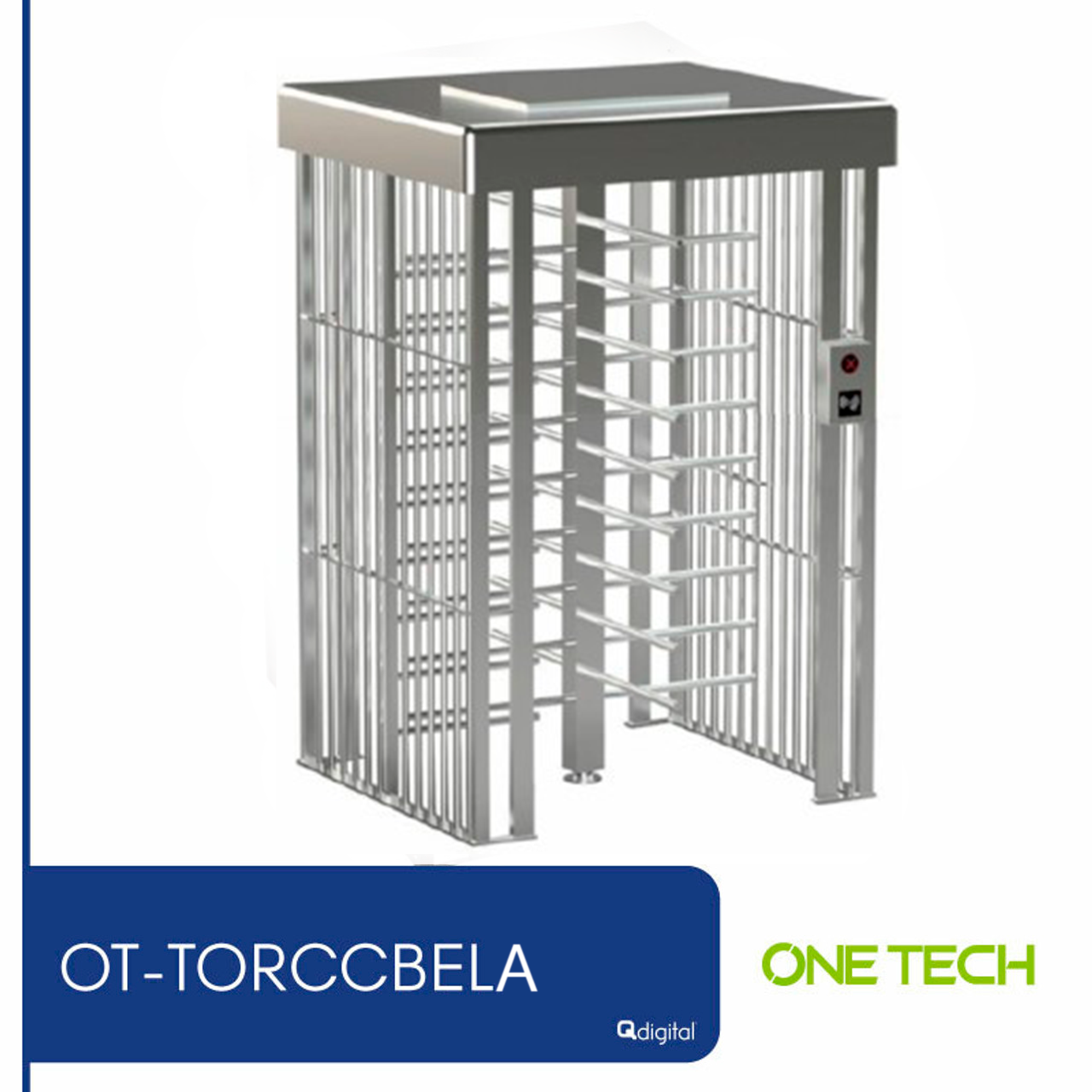

Torniquete Electrónico Sencillo Bidireccional

INFORMACIÓN

• Power supply: AC220V±10%V 50HZ
• Power consumption: static power consumption <50W, dynamic power consumption <100W
• Rotation direction: one-way or two-way
• Communication interface: switch value, optionalRS232/RS485
• Pass direction: one-way or two-way
• Product components: 1 set of standar case, 1 set of 90-degree revolving door, 1 set of panel barriers, 1 set of arc barriers, 1 set of control panels, 1 set of movement
• Shape: lenght 1500 * width 1500 * height 2300, net height 2000mm
• The fence lenghtL: 600mm, and th door leaf is made up of 120 degrees of the fence
• Swing arm lenght outside the chassis: ≤430mm
• Opening time: not adjustable
• Number of passers: 20 persons/minute
• Working enviroment temperature: -21°C - 70°C, relative humidity ≤90%, non condensing
• Automatic reset function: after opening the gate, the system will be automatically locked if it is not passed within the specified time, and the travel limit time is adjustable
• Chasis material: standard 304 stainless steel. Thickness: 1.5mm
•

• SOBRE PEDIDO PREGUNTAR TIEMPO DE ENTREGA
